Container Dimensions (metric) |
|
|
|
Standard External Container Dimensions |
|
|
(8ft) |
(10ft) |
(20ft) |
(30ft) |
(40ft) |
|
Container Length |
2.42m |
3.05m |
6.06m |
9.12m |
12.19m |
|
Container Width |
2.17m |
2.44m |
2.44m |
2.44m |
2.44m |
|
Container Height |
|
|
|
|
|
|
» Standard |
2.26m |
2.59m |
2.59m |
2.59m |
2.59m |
|
» High cube |
- |
2.89m |
2.89m |
2.89m |
2.89m |
Standard Internal Container Dimensions
|
Internal Length |
2.28m |
2.80m |
5.87m |
8.93m |
12.00m |
|
Internal Width |
2.10m |
2.33m |
2.33m |
2.33m |
2.33m |
|
Internal Height |
|
|
|
|
|
|
» Standard |
2.04m |
2.35m |
2.35m |
2.35m |
2.35m |
|
» High cube |
- |
2.65m |
2.65m |
2.65m |
2.65m |
|
End Door Aperture Width |
2.09m |
as req. |
2.28m |
2.28m |
2.28m |
|
End Door Aperture Height |
|
|
|
|
|
|
» Standard |
1.94m |
as req. |
2.26m |
2.26m |
2.26m |
|
» High cube |
- |
as req. |
2.56m |
2.56m |
2.56m |
|
Floor area |
4.78m2 |
6.69m2 |
13.93m2 |
21.09m2 |
28.33m2 |
|
Cubic capacity |
|
|
|
|
|
|
» Standard |
9.28m3 |
15.89m3 |
32.85m3 |
49.84m3 |
66.83m3 |
|
» High cube |
- |
17.84m3 |
37.09m3 |
56.21m3 |
75.32m3 |
|
Weight |
0.95 tonnes |
1.52 tonnes |
2.23 tonnes |
2.84 tonnes |
3.35 tonnes |
|
 |
|
ID Code |
P6P, PMC (Lower Deck) |
|
U.S. Domestic Code |
|
|
Aircraft types and Main or Lower deck |
All 747's & 767*, A330 Lower Deck |
|
Rate Class |
2BG |
|
Internal Volume |
|
|
Limiting Internal Dimensions |
|
|
Maximum Gross Weight |
5.035kg (11100lb) |
|
Tare Weight (incl. net) |
110 kg (242lb) |
|
* Advance arrangements needed for
carriage on 747 lower deck. |
 |
|
ID Code |
P6P, PMC (Main Deck) |
|
U.S. Domestic Code |
M-1 (Main Deck) |
|
Aircraft types and Main or Lower deck |
747 Freighter Main Deck * |
|
Rate Class |
2H |
|
Internal Volume |
|
|
Limiting Internal Dimensions |
|
|
Maximum Gross Weight |
6.800 kg (15.000 lb) |
|
Tare Weight (incl. net) |
110 kg (242lb) |
|
*Contour applies to 747F side-door
loader. On 747F nose-door loader max. height is 224cm/96in. |
 |
|
ID Code |

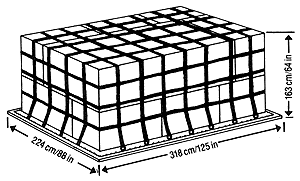

P1P, PAG, PAP, PAJ, P1G (Lower Deck) |
|
U.S. Domestic Code |
LD-7 |
|
Aircraft types and Main or Lower deck |
All 747's & 767 *, A330 Lower Deck |
|
Rate Class |
5 |
|
Internal Volume |
|
|
Limiting Internal Dimensions |
|
|
Maximum Gross Weight |
4.626 kg (10..200 lb) |
|
Tare Weight (incl. net) |
110 kg (242lb) |
|
*This unit may also be loaded on the
main deck of 747F. Max. gross weight is then 6.800 kg/15.000 lb. On 767,
max. gross weight is 5.035 kg/11100 lb. |
 |
|
ID Code |

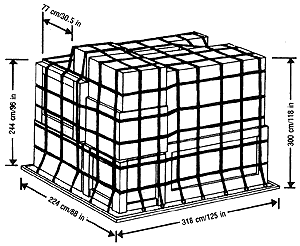

P1P, PAG, PAP, PAJ, P1G (Main Deck) |
|
U.S. Domestic Code |
M-1 |
|
Aircraft types and Main or Lower deck |
747 Freighter - side door loading Main Deck * |
|
Rate Class |
2C |
|
Internal Volume |
|
|
Limiting Internal Dimensions |
|
|
Maximum Gross Weight |
6.800 kg (15.000 lb) |
|
Tare Weight (incl. net) |
110 kg (242lb) |
|
** Contour applies to 747F side-door
loader. On 747F nose-door loader max. height is 224 cm/96in. |
 |
|
ID Code |
P1P, PAG, PAP, PAJ, P1G (Main Deck) |
|
U.S. Domestic Code |
M-1 |
|
Aircraft types and Main or Lower deck |
747 Freighter - side door loading Main Deck * |
|
Rate Class |
2C |
|
Internal Volume |
|
|
Limiting Internal Dimensions |
|
|
Maximum Gross Weight |
6.800 kg (15.000 lb) |
|
Tare Weight (incl. net) |
110 kg (242lb) |
|
** Contour applies to 747F side-door
loader. On 747F nose-door loader max. height is 224cm/96in. |
 |
|
ID Code |

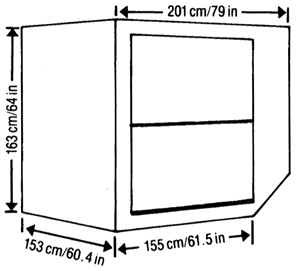

AVE, AKE |
|
U.S. Domestic Code |
LD-3 |
|
Aircraft types and Main or Lower deck |
All 747's & 767, A330 Lower Deck |
|
Rate Class |
8 |
|
Internal Volume |
4.3 m³ (153 cu ft) |
|
Limiting Internal Dimensions |
140 x 147 x 152 cm (55 x 58 x 60 in) |
|
Maximum Gross Weight |
1.587 kg (3.500 lb) |
|
Tare Weight (incl. net) |
* |
|
* Actual tare weights vary from 76
kg/165 lb to 81 kg/178 lb depending on manufacturer's models. |
 |
|
ID Code |

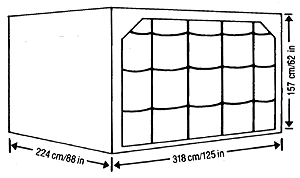

AA2, AAP |
|
U.S. Domestic Code |
LD-9 |
|
Aircraft types and Main or Lower deck |
All 747's & 767*, A330 Lower Deck |
|
Rate Class |
5 |
|
Internal Volume |
10.6 m³ (374 cu ft) |
|
Limiting Internal Dimensions |
208 x 302 x 152 cm (82 x 119 x 60 in) |
|
Maximum Gross Weight |
4.626 kg (10200 lb) * |
|
Tare Weight (incl. net) |
+ |
* This unit may also be loaded on the
main deck of 747F. Max. gross weight is then 6.800 kg/15.000 lb. On 767,
max. gross weight is 5.100 kg/11243 lb.
+ Actual tare weights vary from 200 kg/441 lb to 272 kg/600 lb depending
on manufacturer's models. |
 |
|
ID Code |

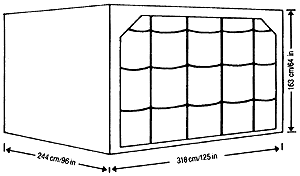

AMP + |
|
U.S. Domestic Code |
|
|
Aircraft types and Main or Lower deck |
All 747's & 767*, A330 Lower Deck |
|
Rate Class |
2BG |
|
Internal Volume |
11.4 m³ (403 cu ft) |
|
Limiting Internal Dimensions |
229 x 302 x 152 cm (90 x 119 x 60 in) |
|
Maximum Gross Weight |
5.030 kg (10200 lb) * |
|
Tare Weight (incl. net) |
266 kg (587 lb) |
* This unit may also be loaded on the
main deck of 747F. Max. gross weight is then 6.800 kg/15.000 lb. On 767,
max. gross weight is 5.100 kg/11243 lb.
+ Advance arrangements needed for carriage on 747 lower deck. |
 |
|
ID Code |

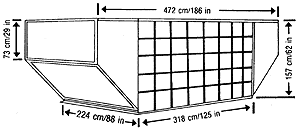

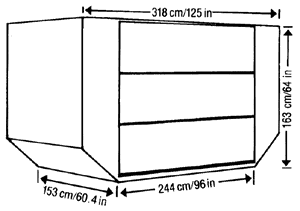

AAU |
|
U.S. Domestic Code |
LD-29 |
|
Aircraft types and Main or Lower deck |
All 747's |
|
Rate Class |
5W |
|
Internal Volume |
14.5 m³ (511 cu ft) |
|
Limiting Internal Dimensions |
208 x 302 x 152 cm (82 x 119 x 60 in) |
|
|
